垃圾替代燃料(RDF)的干燥工藝

2023-09-11

對話Yves Marc Schade

德國施德蘭干燥技術有限公司
導讀 | 《世界水泥》雜志最近與德國施德蘭干燥技術有限公司產品總監Yves Marc Schade討論生產企業使用垃圾燃料減少粉塵排放的潛力,并就可制備垃圾燃料材料實現高效、可持續燃燒的最佳技術和機械提供建議。

01

比較

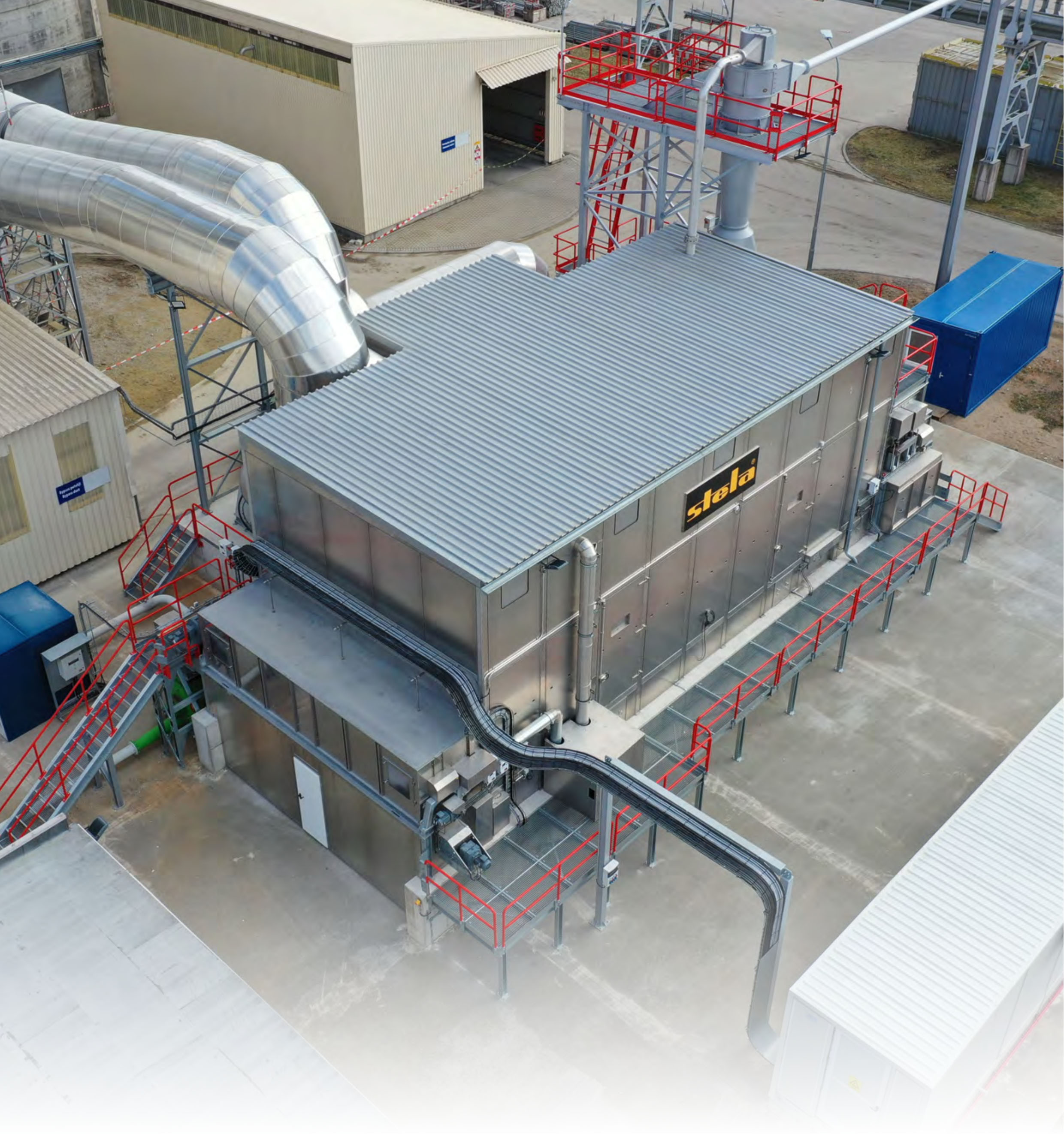

未公開的德國水泥廠,出料量8.9 t/h, 15%-5%濕度

垃圾燃料(RDF)是去除了不可燃物部分的城市固廢經過處理制備而成的。帶式干燥機通常用于垃圾燃料(RDF)的生產過程中,在廢料轉化為燃料之前,通過帶式干燥機對固廢進行干燥,低溫帶式干燥機用于干燥垃圾燃料(RDF)的優點有很多:

Refuse-derived fuel (RDF) is produced with municipal solid waste that has been processed to remove non-combustible materials. Belt dryers are commonly used in the RDF production process to dry the waste material before it is converted into fuel. Some of the advantages of low-temperature belt dryers for drying RDF are:


  • 能效:與高溫干燥機相比,低溫帶式干燥機的能耗明顯較少,這意味著低溫帶干燥機式更節能,有助于降低運營成本。

  • Energy efficiency: Low-temperature belt dryers use significantly less energy compared to high-temperature dryers. This means that low-temperature dryers are more energy-efficient and can help reduce operating costs.

  • 低粉塵排放:低溫帶式干燥機比高溫干燥機產生更少的粉塵排放,在環保方面更友好。這是因為低溫干燥過程中蒸發水分所需要的能耗較少,運行所需的燃料也較少,從而降低了粉塵排放。

  • Reduced emissions: Low-temperature belt dryers produce less emissions than high-temperature dryers, making them more environmentally friendly. This is because the low-temperature drying process produces less moisture and requires less fuel to operate, resulting in lower emissions.

  • 高品質干料:低溫帶式干燥機通過防止干燥過程中物料因過熱而分解,有助于保證垃圾燃料(RDF)最終干料的質量,這種方式將確保更加均勻一致的高品質干料。

  • High quality product: Low-temperature belt dryers help maintain the quality of the RDF product by preventing it from overheating and breaking down. This results in a more consistent and high-quality product.

  • 安全性提升:比高溫干燥機操作更安全,因為火災和爆炸的風險更小,這也是因為在干燥過程中使用的較低溫度的熱風降低了著火和燃燒的風險。

  • Improved safety: Low-temperature belt dryers are safer to operate than high-temperature dryers, as there is less risk of fire and explosion. This is because the lower temperatures used in the drying process reduce the risk of ignition and combustion.

  • 多場景應用:低溫帶式干燥機由于其溫和的干燥過程,可應用于多種物料干燥,包括垃圾燃料(RDF)。這意味著相同的設備可用于多種應用場景,減少了對額外設備的需求,從而節省投資。

  • Versatility: Low-temperature belt dryers can be used for a wide range of materials, including RDF, due to their gentle drying process. This means that the same equipment can be used for multiple applications, reducing the need for additional equipment and thus saving money.

02

優勢

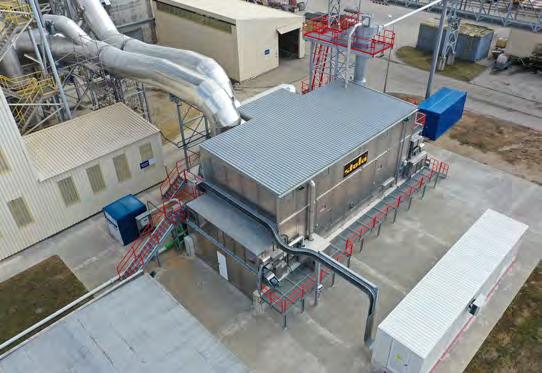

拉脫維亞Broceni水泥廠,出料量7.7 t/h, 25%-3%濕度


總的來說,低溫帶式干燥機在干燥垃圾燃料(RDF)方面比高溫干燥機具有這些優勢:包括能效、低粉塵排放、高質量干料、提高安全性提升和多場景應用。

Overall, low-temperature belt dryers offer several advantages over high-temperature dryers for drying RDF, including energy efficiency, reduced emissions, high-quality product, improved safety, and versatility.


垃圾燃料(RDF)替代煤炭和天然氣等化石燃料,實現碳中和的水泥生產,而這些燃料都是水泥生產中傳統主要能源,以下是垃圾燃料(RDF)在水泥生產中實現碳中和的一些方法:

RDF can be used in a carbon neutral cement production process by replacing fossil fuels, such as coal and natural gas, which are traditionally used as the primary energy source in cement manufacturing. Here are some ways RDF can be utilised to achieve CO2 neutrality in cement production:

  • 替代燃料:垃圾燃料(RDF)可以用作水泥窯的替代燃料,取代一部分用于產生窯熱的煤炭等化石燃料,通過減少煤炭等化石燃料的耗量和相應的二氧化碳排放量,減少了水泥生產過程的碳足跡。

  • Alternative fuel: RDF can be used as an alternative fuel in the cement kiln, replacing a portion of the fossil fuels used to generate heat. This reduces the carbon footprint of the cement production process by reducing the amount of fossil fuels burned and the associated CO2 emissions.


  • 熱能回收:通過利用熟料冷卻過程中產生的窯頭廢熱來提高垃圾燃料(RDF)的熱能,既減少了對化石燃料的需求,又確保以高效和可持續的方式利用固廢的熱值。

  • Energy recovery: The energy content of RDF will be elevated by using excess heat generated during clinker cooling. This reduces the need for fossil fuels and ensures that the energy content of the waste material is utilised in an efficient and sustainable manner.


03

應用

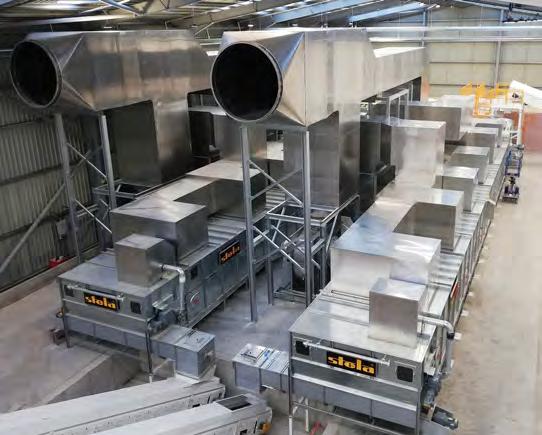

英國Nawrocki造粒廠,出料量4.5 t/h, 20%-10%濕度


在水泥生產中使用垃圾燃料(RDF)可以減少水泥生產過程的碳足跡,并有助于實現碳中和。通過利用垃圾燃料(RDF)作為替代燃料并回收其熱能,可以減少對煤炭等化石燃料的需求,從而降低粉塵排放。此外,通過捕獲和儲存二氧化碳排放,水泥生產過程可以成為碳中和的甚至碳負。垃圾燃料(RDF)的使用可能會對未來的水泥生產產生重大影響。隨著世界尋求向更可持續和低碳的能源轉型,垃圾燃料(RDF)已成為水泥生產的一種可行的替代燃料來源。以下是RDF的使用可能影響未來水泥生產的一些方式:
The use of RDF in cement production can reduce the carbon footprint of the cement manufacturing process and help achieve CO2 neutrality. By utilising RDF as an alternative fuel and recovering its energy content, the need for fossil fuels can be reduced, resulting in lower emissions. Additionally, by capturing and storing CO2 emissions, the cement production process can become carbon neutral or even carbon negative. The use of RDF is likely to have a significant impact on cement production in the future. As the world seeks to transition to more sustainable and low-carbon energy sources, RDF has emerged as a viable alternative fuel source for cement production. Here are some ways in which the usage of RDF is likely to impact cement production in the future:


  • 減少碳足跡:在水泥生產中使用垃圾燃料(RDF)可以顯著減少水泥生產過程的碳足跡。通過用垃圾燃料(RDF)取代煤炭等化石燃料,可以大大減少與水泥生產相關的碳排放,有助于減輕水泥行業對環境的影響。

  • Reduced carbon footprint: The use of RDF in cement production can significantly reduce the carbon footprint of the cement manufacturing process. By replacing fossil fuels with RDF, the emissions associated with cement production can be greatly reduced, helping to mitigate the impact of the cement industry on the environment.

  • 能效:垃圾燃料(RDF)可以通過提供更高效和可持續的替代燃料來幫助提高水泥生產的能效,這有助于降低能耗以及成本,并提高水泥生產過程的整體可持續發展。

  • Energy efficiency: RDF can help to improve the energy efficiency of cement production by providing a more efficient and sustainable source of fuel. This can help to reduce energy consumption, lower costs, and improve the overall sustainability of the cement production process.


  • 固廢處置:在水泥生產中使用垃圾燃料(RDF)可以為可能最終被填埋的廢料提供一個可持續的處置出口,從而有助于解決日益嚴重的固廢處置問題。這有助于減少固廢量,并將固廢處置對環境的影響降至最低。

  • Waste management: The use of RDF in cement production can help to address the growing problem of waste management by providing a sustainable outlet for waste materials that might otherwise end up in landfills. This can help to reduce the amount of waste generated and minimise the environmental impact of waste disposal.

  • 法規和激勵措施:世界各國政府越來越多地實施法規和激勵政策,鼓勵在水泥生產中使用包括垃圾燃料(RDF)在內的替代燃料,這可能會推動RDF在水泥行業的應用,并進一步加速向更可持續的能源形式的過渡。

  • Regulations and incentives: Governments around the world are increasingly implementing regulations and incentives to encourage the use of alternative fuels, including RDF, in cement production. This is likely to drive the adoption of RDF in the cement industry and further accelerate the transition to more sustainable forms of energy.

04

總結


總體而言,垃圾燃料(RDF)的使用可能會對未來的水泥生產產生重大影響,有助于提高水泥生產過程的可持續性和效率,同時減少水泥行業對環境的影響。

Overall, the use of RDF is likely to have a significant impact on cement production in the future, helping to improve the sustainability and efficiency of the cement manufacturing process while reducing the industry’s impact on the environment.



  • 直接采用窯頭廢熱 directly heated by process air
  • 全自動化操作 fully automated operation
  • 低溫干燥技術 low temperature drying
  • 有效可靠的工藝 proven technol


source and copyright: World Cement Magazine, August 2023

來源和版權:《世界水泥雜志》,2023年8月
