臺泥貴港廠利用窯頭廢熱的替代燃料烘干機成功驗收
2023-01-31

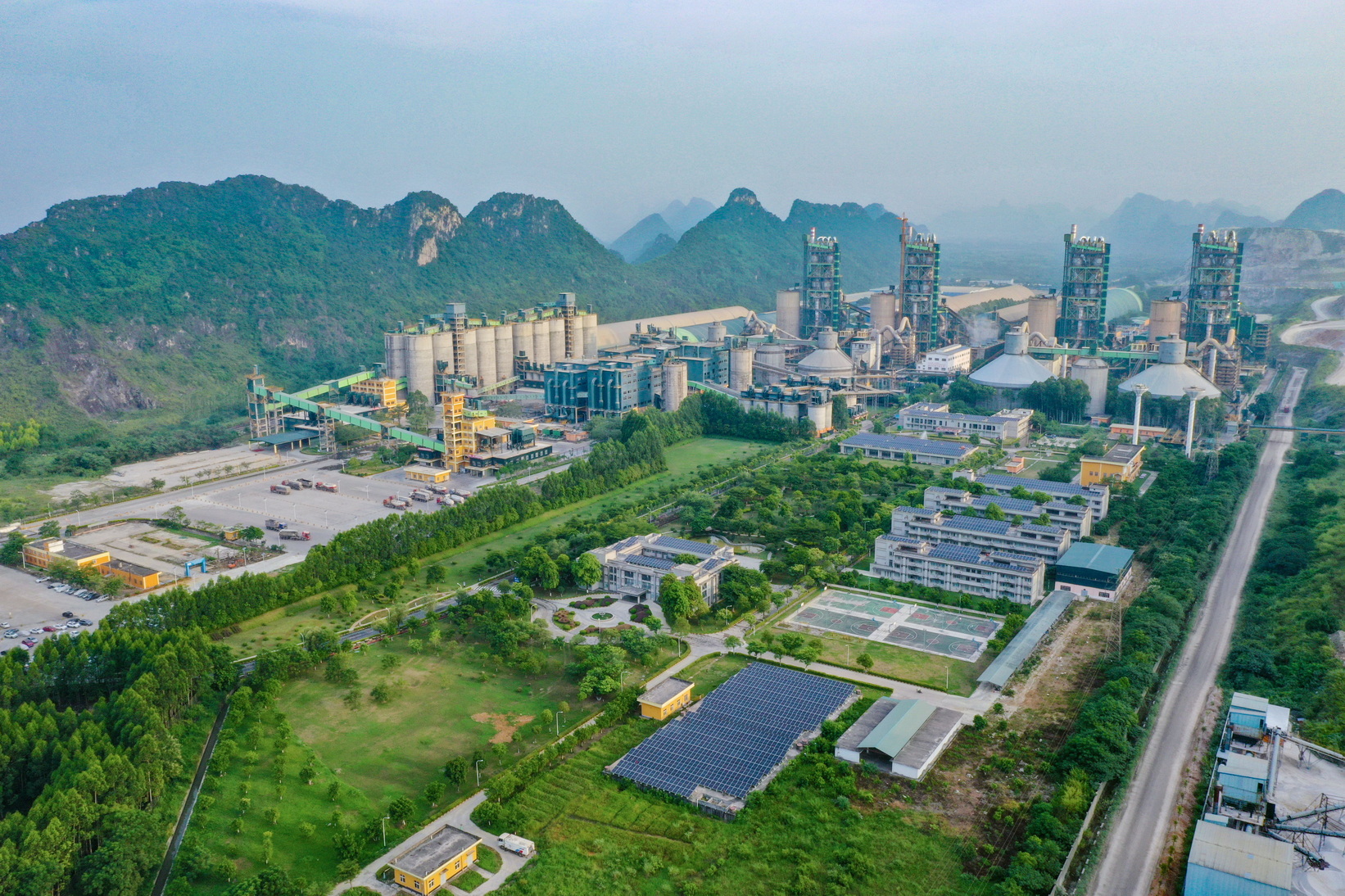

Project information 項目信息 Project name 項目名稱: AF belt drying by hot gas from clinker cooler 臺泥貴港廠利用窯頭廢熱烘干替代燃料項目 Year 購買年份: 2021 背景介紹 As competition on cement market drives plants further development, each cement factory searches for new solutions, which could allow them to low operating cost, one of the solutions in the cement plants is reduction of primary fuel (pulverized coal) use, which increasing use of alternative fuel. 水泥行業的競爭推動了水泥工廠加速可持續發展,為了減少運行成本,各個水泥工廠都在尋求最優的解決方案,其中之一就是在水泥行業減少初級能源(煤粉),增加替代燃料的利用率。 圖2:臺泥貴港綠色工廠 Taiwan cement corporation (TCC) has been committed to promote energy transformation and carbon emission reduction, especially in the collaborative disposal of cement kilns and the development of green revewable energy. Alternative fuels are used to help achieve the target of "carbon peaking and carbon neutrality", while practicing the new function of "a good helper of the government and a excellent purifier of the city" as well. TCC continues to research and develop the use efficiency of alternative fuels, plant to substitute up to 80% of kiln heat demand by utilization of alternative fuels. Since many year TCC has been implementing multiple modernization projects resulting in better efficiency and automation. Use of RDF fuel is not only reduced carbon emissions during producing. but also reduce the cost of primary fuel. 臺泥集團致力于推動能源轉型和減碳事業,特別是在水泥窯協同處置、綠色再生能源發展方面也有諸多實踐,其中通過替代燃料助力實現“雙碳”目標,同時也踐行“政府好幫手,城市凈化器”的新職能。臺泥集團持續研發替代燃料的使用效率,希望實現工廠80%的窯爐熱能來自于替代燃料。多年前臺泥集團就開始執行這項決策,在多個現代化項目中實現了更高的效率和自動化,不僅降低了生產中的碳排放,還減少了燃料成本。 項目進展 Our customer Taiwan cement Guigang city in Guangxi Province, China, the assembly of belt dryer with hot gas piping has been complete in 25/9/2022 on time, the commissioning has been complete in 15/12/2022. 位于中國廣西的臺泥貴港工廠按時在2022年9月25日完成烘干機及熱風管道的安裝,于2022年12月25日完成調試并順利交付。 圖3:替代燃料烘干系統框架結構 The high demand for alternative fuel is influencing quality deviations in deliveries, which forces TCC plant to utilize high moisture materials, to reach Alternative Fuel rate target. That’s the idea behind the installation of stela dryer. 對替代燃料的高標準要求是影響運輸質量的一個重要因素,迫使臺泥工廠不得不利用一些濕度更高的原料,從而達到替代燃料利用率目標要求,這就是配置施德蘭烘干機的思路。 This drying system is integrated into the newly planned alternative fuel system which uses waste hot gas from grate cooler of kiln No.3 and No.4. 烘干系統集成在新建替代燃料系統中,利用3號和4號線篦冷機后的窯頭熱風。 圖4:替代燃料烘干系統及風管 The successfully implemented commissioning and optimization of stela alternative fuel drier capable of utilization of sawdust, bark, wood chip and waste cloth. With maximum moisture content of 55%(50 as average) and corresponding input capacity of 21 t/h of wet product. Drier’s maximum capacity is approx. 12.4 t/h with 15% water content in dried material. 成功完成調試并優化施德蘭替代燃料烘干機能夠利用最大濕度為55%(平均50%)的木屑,樹皮以及廢紡等替代燃料,相應的濕料喂入量為21噸/小時,最大出料量濕度約15%,12.4噸/小時的干料。 戰略目標 First of all, the main task of build stela drying system to replace coal fuel with refuse-derived fuel (RDF) and wood chips and achieve substantial savings in clinker manufacturing costs; 首先,采用施德蘭烘干機的首要任務是采用替代燃料和木屑來取代煤炭,并大幅節省熟料生產成本; Secondly, improving use of alternative fuel by utilization of waste hot gases volume to obtain a higher specific calorific value of the alternative fuels and a possibility to substitute more expensive pulverized coal; 其次,通過窯頭廢熱蒸發改善替代燃料的利用,以獲得更高的替代燃料比熱值,并有可能替代更貴的煤粉; Thirdly, acquire a constant source of alternative fuels supply at competitive prices in comparison to the prices offered by other suppliers; 再次,通過提供比其它水泥工廠更具有競爭力的價格來獲取替代燃料的穩定供貨。 Finally, implement the first step to a long-term goal for TCC set up in the strategy in terms of using Alternative Fuel, i.e., achieve 50% Alternative Fuel substitution rate in heat consumption. 最后,在使用替代燃料方面,實施臺泥戰略中設定的長期目標第一步,即在熱耗方面實現50%的替代燃料利用率。 圖5:替代燃料烘干系統全景鳥瞰

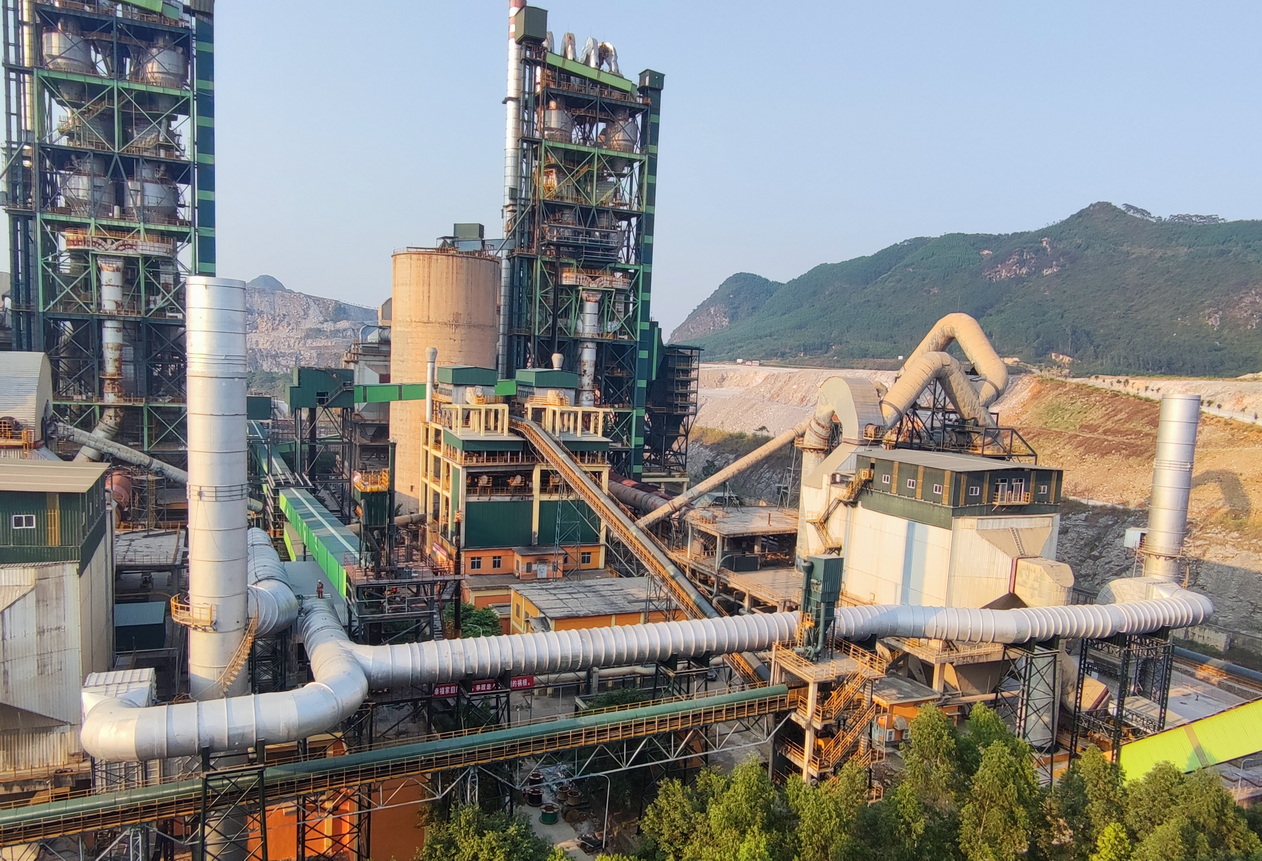

圖1:替代燃料機
